| Place of Origin: | China |
|---|---|
| Brand Name: | AVATA |
| Certification: | CE/FCC/RED/ROHS/ISO9001 |
| Model Number: | 94104HP+94202 |
| Minimum Order Quantity: | 100sets |
| Price: | $100-$150/set |
| Packaging Details: | Neutral packing，OEM/ODM Packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal, L/C |
| Supply Ability: | 40000 PCS/Month |
| Material: | Metal | Type: | 4 Wire Video Door Phone |
|---|---|---|---|
| Screen: | 10 Inch Touch Screen+touch Key | Connection: | 4 Wire,cat 5 |
| Night Vision:: | Yes | Voice Service: | Yes |
| Installation: | Surface-Mounted | Power: | DC15V, 0.8A / AC100-240V 50/60Hz (Optional) |
| Indoor Monitor Unlock Release: | Support | Outdoor Panel Unlock Release: | Support |
| Trademark: | OEM / ODM | Camera Sensor: | 2.0MP |
| View Angle: | 160° | LEDs For Night Vision: | Red Light LED |
| Operation Temp: | -40ºC +50ºC | Waterproof Rate: | IP65 |

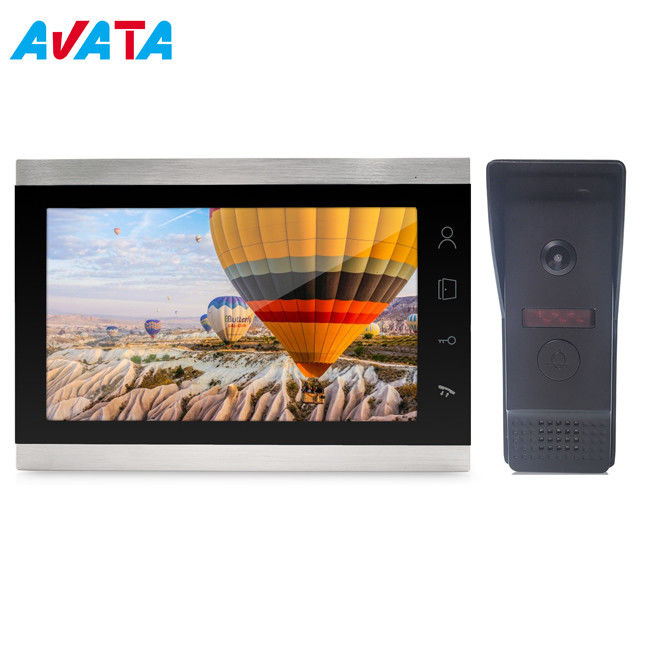

Metal 10" Big Touch Screen HD Video Door Bell Video Intercom for home security
|

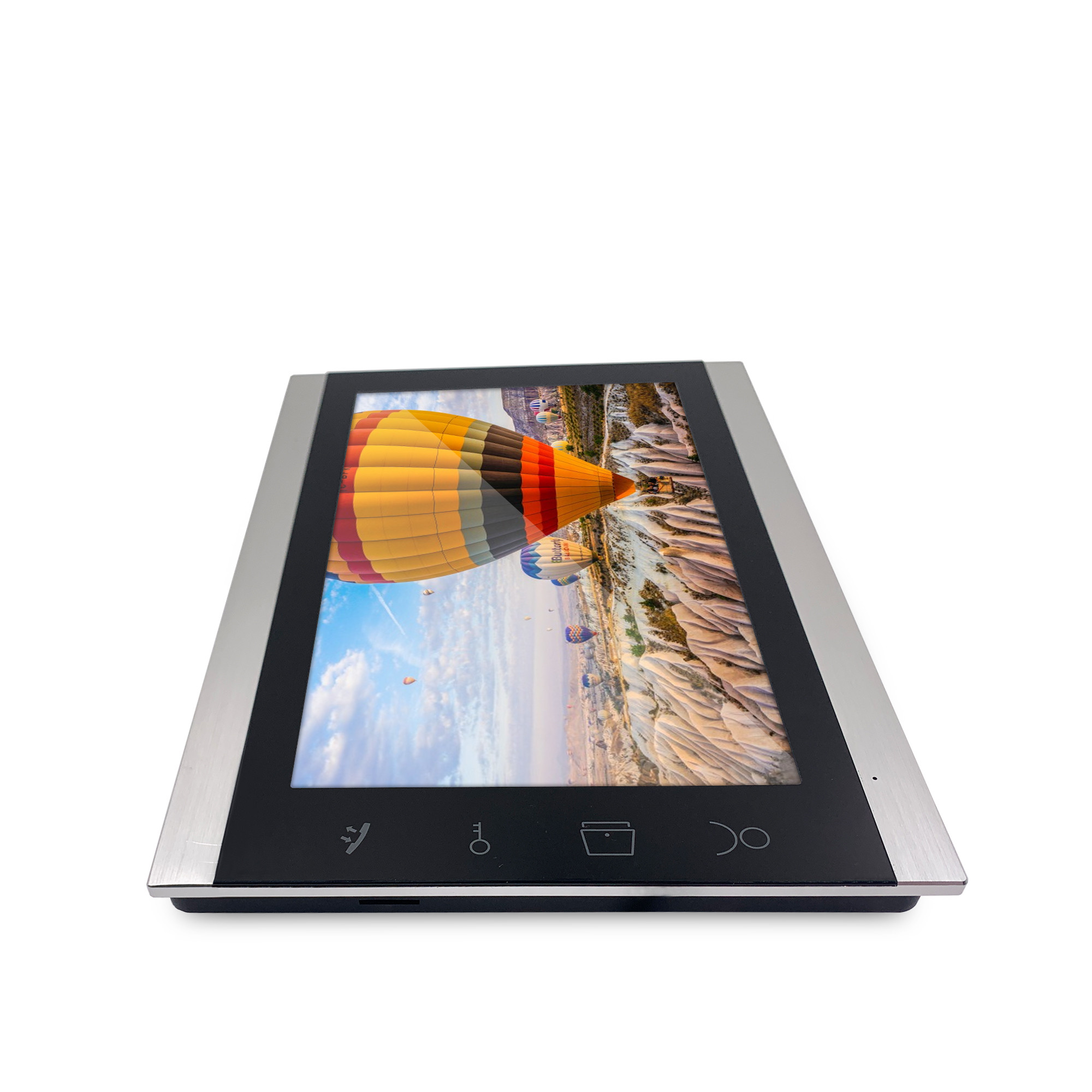

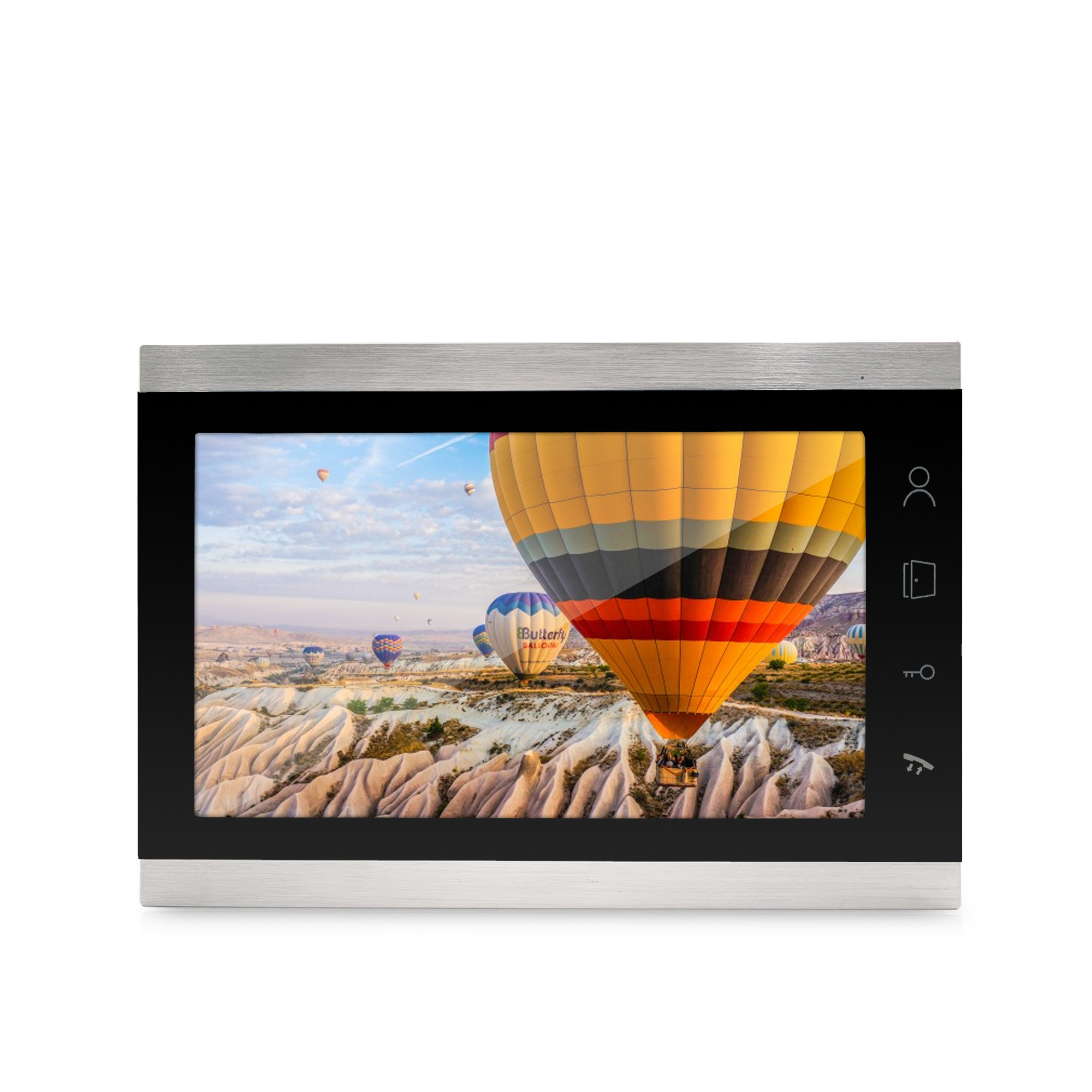

Indoor Monitor
|
Product Type | AHD 1080P /960P/1080P/CVI/TVI/AHD/CVBS video input |
| Material | Metal | |
| Monitor | 10 Inch TFT Intercom | |
| Resolution | 1024(RGB)×600(V) | |
| Standard | PAL/NTSC | |
| Calling Mode | Two-way Intercom | |
| Stanby Current | Maximum 250MA | |
| Work Current | Maximum 600MA | |
| Power Supply | External power DC12V;Built in power AC100-240V | |
| Work Temperature | 0~+50ºC | |
| Installation Way | Surface Mounting | |
| SD Card Max Capacity | 128GB Class 10TF (Micro SD ) Note: Must be use ≥Class10 | |
| Input Video Signal | CVBS/AHD | |
| Motion detection | Yes , inner motion detection For 2 Camera , 2Call Panel work at the same time, also support PIR sensor for external motion detection | |
| System | Support 6 indoor monitor + 2 call panel + 2 Camera | |
| Function | Unlocking/Monitoring/Internal calling/Transfer calling /Recording | |
| Advantage | With Photo Frame/MP3 &MP4 player/Clock & Voice message /backgroud Music | |
|

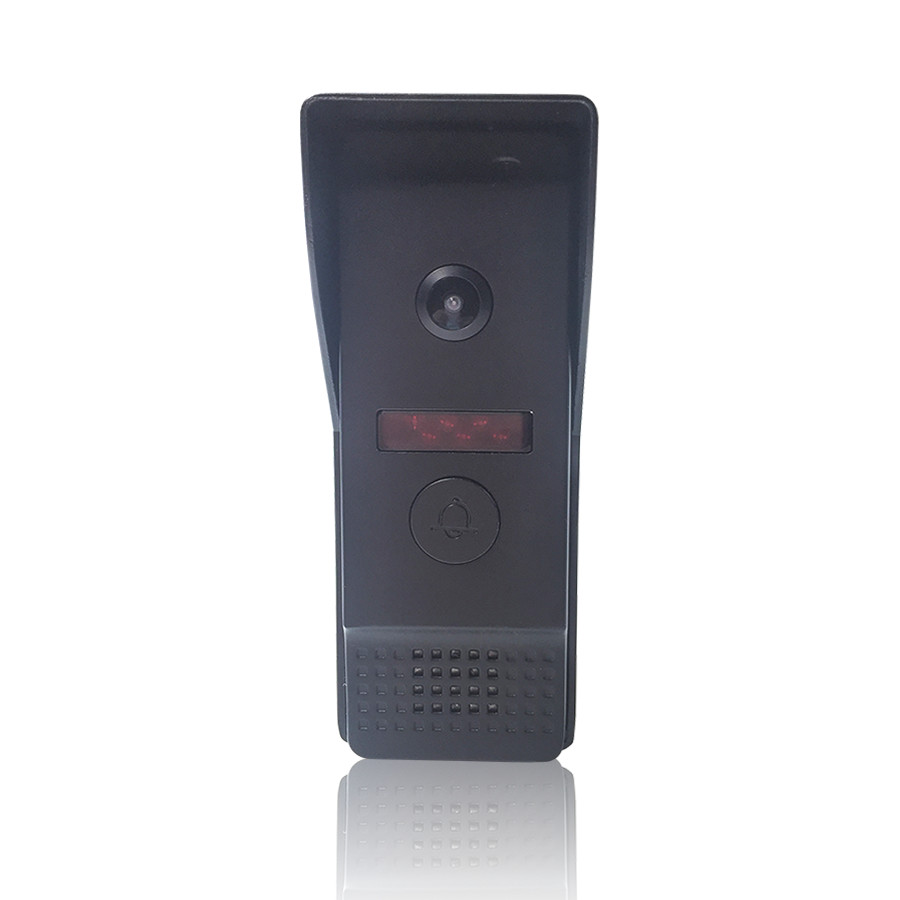

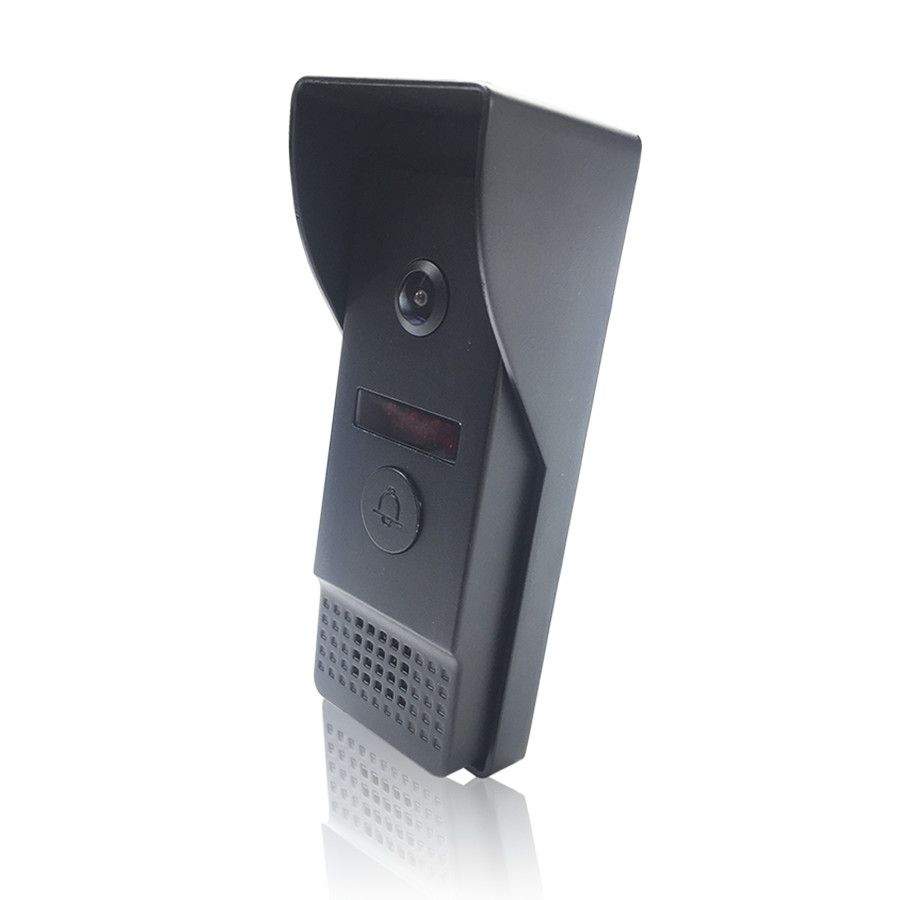

Outdoor Bell
|
Product Type | FHD 1080P video input |
| Camera | 1/2.7''CMOS,2.0MP,AHD1080P | |
| View Angle | 160° | |
| Dimension | 133x48x21mm | |
| lEDS for night | IR LEDs(120°) | |
| Power consumption | 200mA max.(10V-13V DC) | |
| Power Supply | Supplied from Indoor monitor | |
| Work Temperature | -40~+60ºC | |
| Waterproof Rate | IP65 | |
| Function | Unlocking/can be connect to Exit button |
FAQ
1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It´s by software , no need connect with PIR Sensor ,motion detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel , after 30s or 120S , call panel will Auto say:Please leave a message , so that when you come back home can check video from indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When visitor press the call panel , Alina is answer the call , but visitor is looking for Mom , and mom at other room (No5 monitor ), So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only 800*480 ?
A: Because we are doing different with market , In order to help our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
8: Warmly weclome to visit our factory
