| Place of Origin: | China |
|---|---|
| Brand Name: | AVATA |
| Certification: | CE/FCC/RED/ROHS/ISO9001 |
| Model Number: | 96716DP+94218 |
| Minimum Order Quantity: | 100sets |
| Price: | $100-$150/set |
| Packaging Details: | Neutral packing，OEM/ODM Packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal, L/C |
| Supply Ability: | 20000 PCS/Month |
| Material: | Metal | Type: | IP/WIFI Video Door Phone |
|---|---|---|---|
| Screen: | 9 Inch Touch Screen | Connection: | 4 Wire,cat 5,wifi,RJ45 |
| Night Vision:: | Yes | Voice Service: | Yes |
| Installation: | Surface-Mounted | Power: | DC15V, 0.8A / AC100-240V 50/60Hz (Optional) |
| Remote Unlock: | Support | Indoor Monitor Unlock Release: | Support |
| Outdoor Panel Unlock Release: | Support | Trademark: | OEM / ODM |
| Camera Sensor: | 2.0MP | View Angle: | 160° |
| LEDs For Night Vision: | Red Light LED | Operation Temp: | -40ºC +50ºC |
| Waterproof Rate: | IP65 |

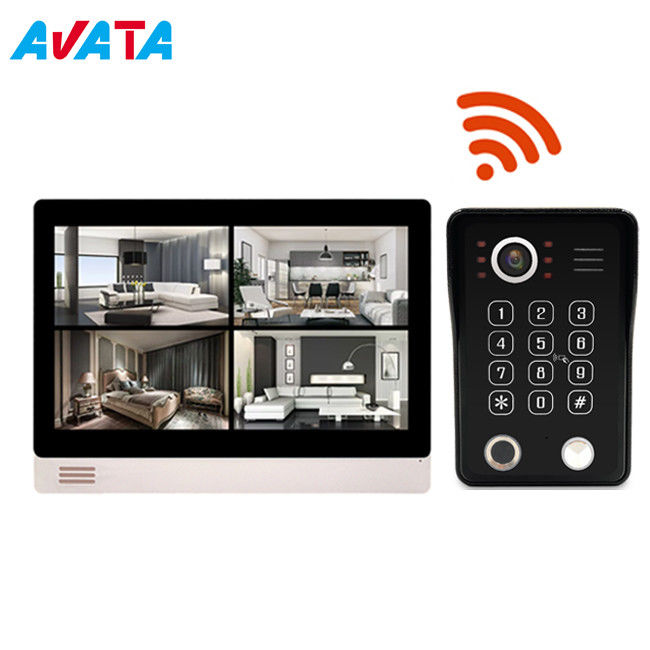

IP WiFi Wireless Fingerprint HD Video Door Phone Doorbell Intercom Support Remote APP Control
Description:-

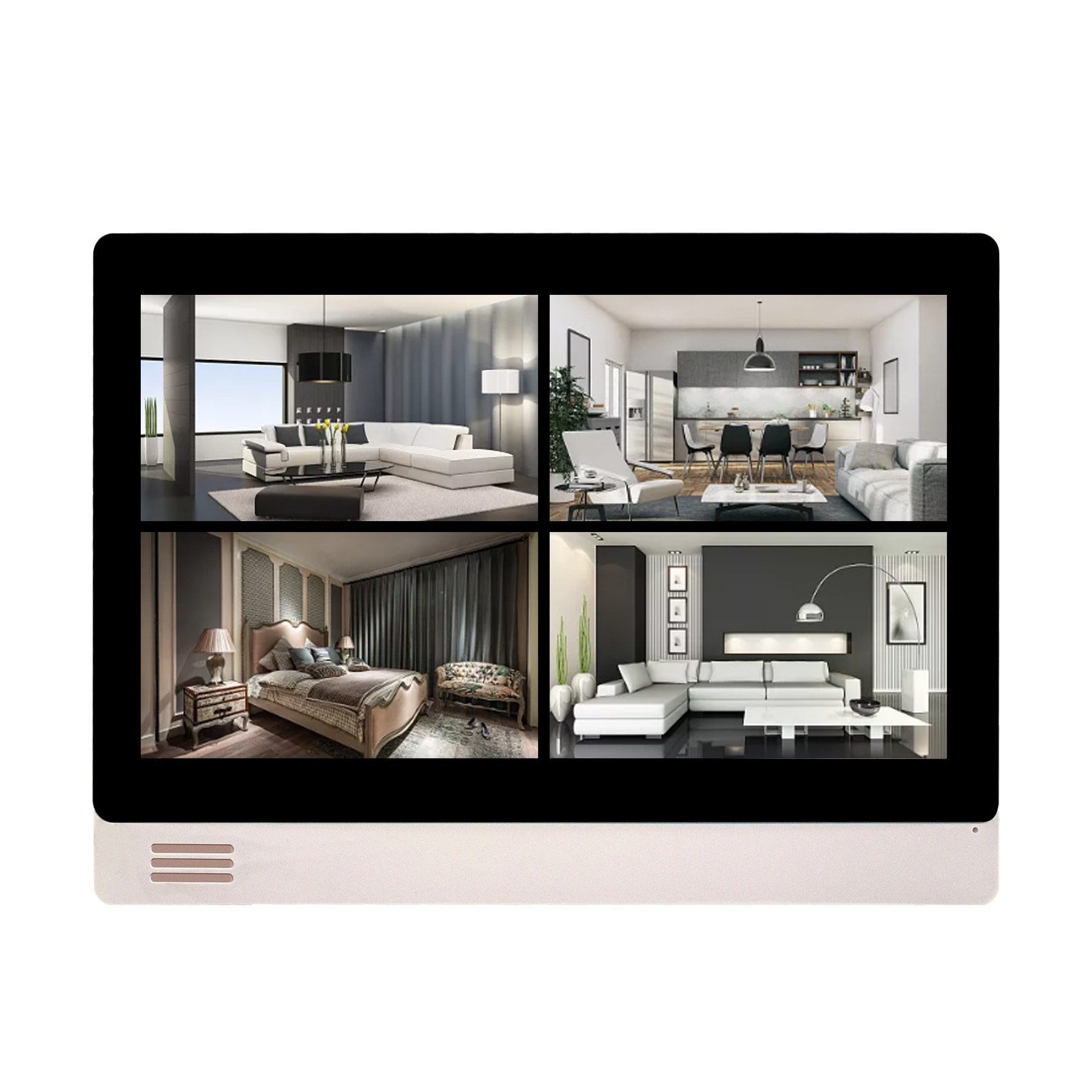

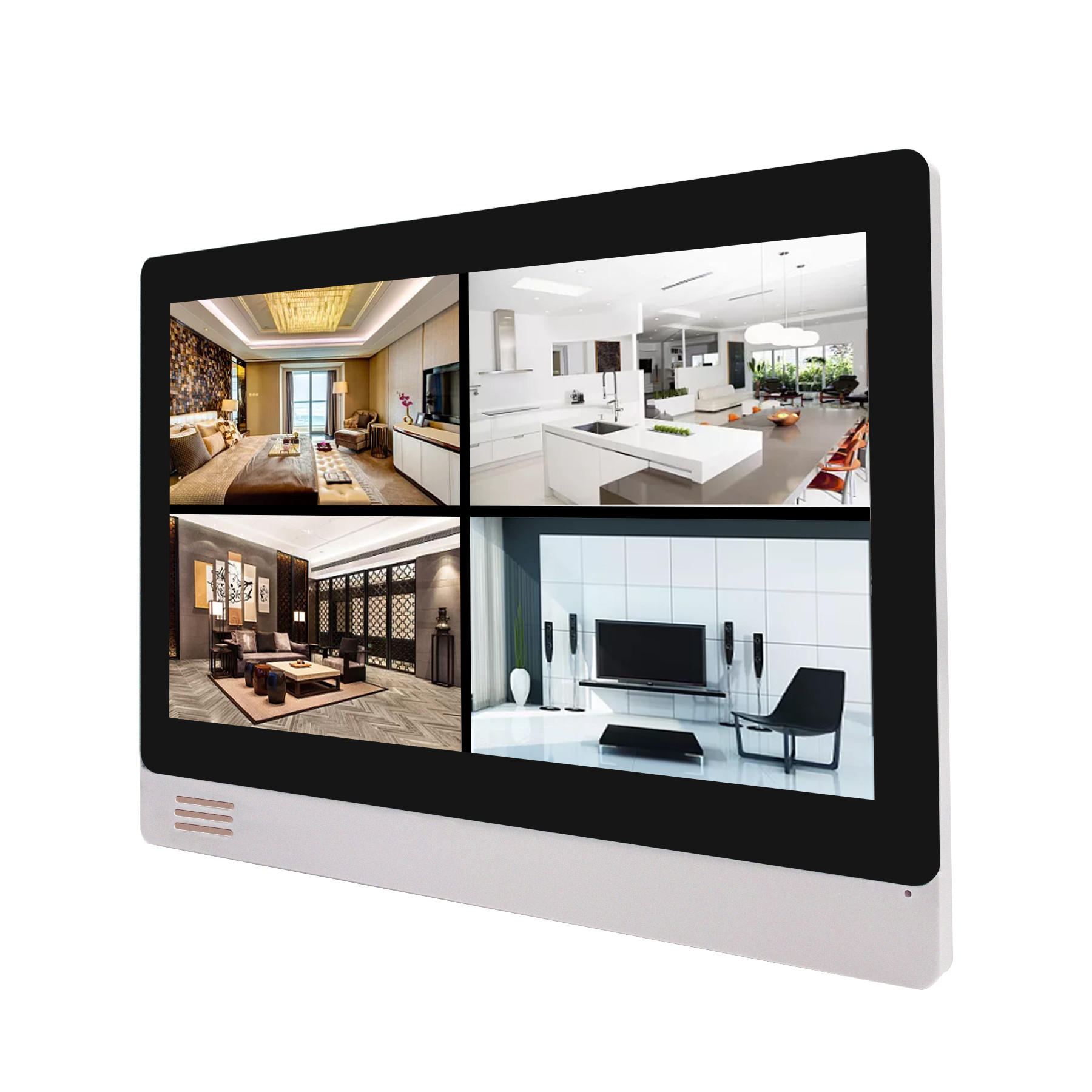

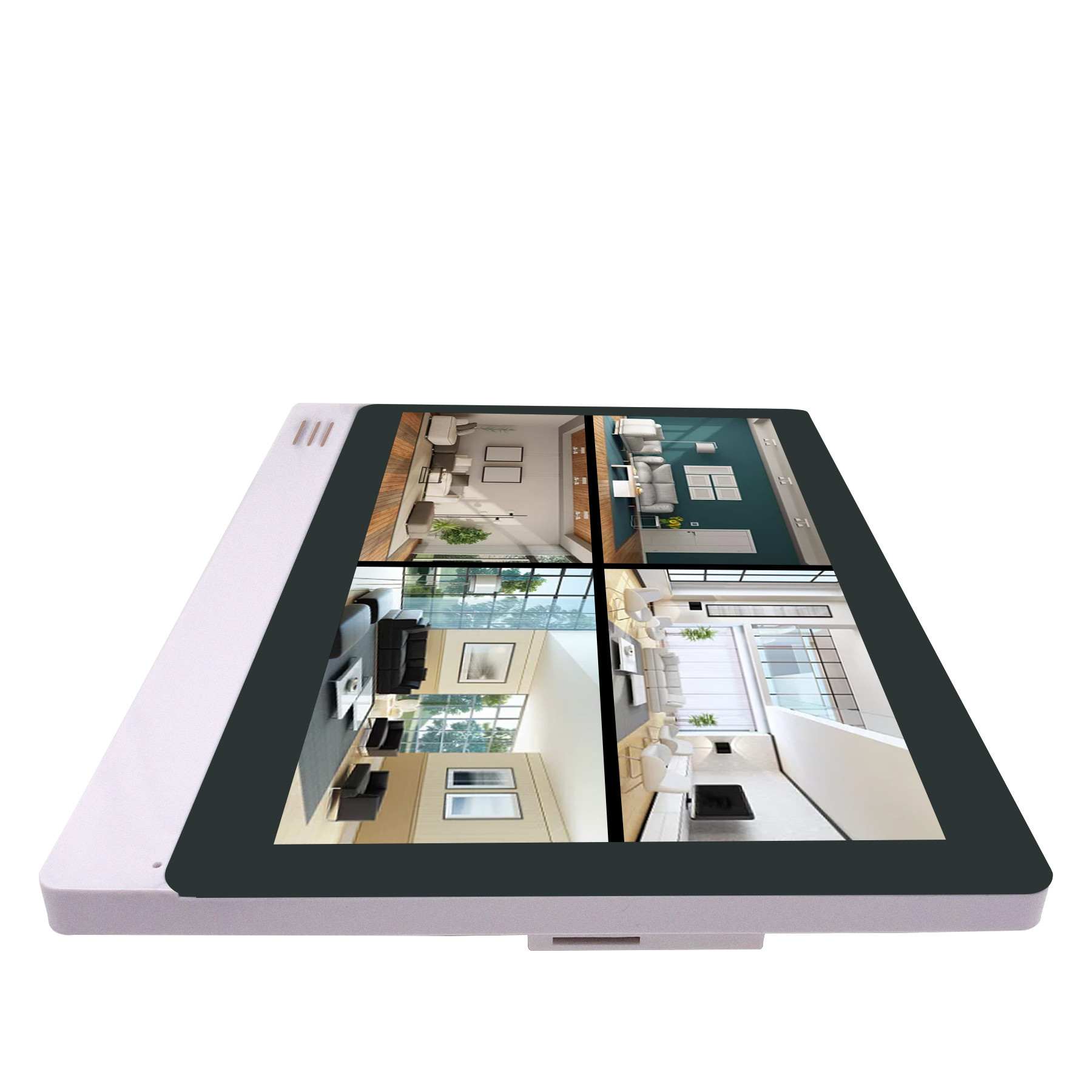

Monitors:
1. 9 inch color TFT digital screen
2. Hands free
3. Touch Screen
4. Surface-mounted
5. External adapter
6. 4 Wires / Cat-5 or Cat-6 /wifi/IP connection
7. Supports 4 video channels
8. Supports maximum length of line connection: 100m
9. Power Supply: DC15V/0.8A
10.Power consumption: 9W(Max),2.5W(standby)
11. TFT resolution: 1024*600
12. Dimension: 224*164*24mm

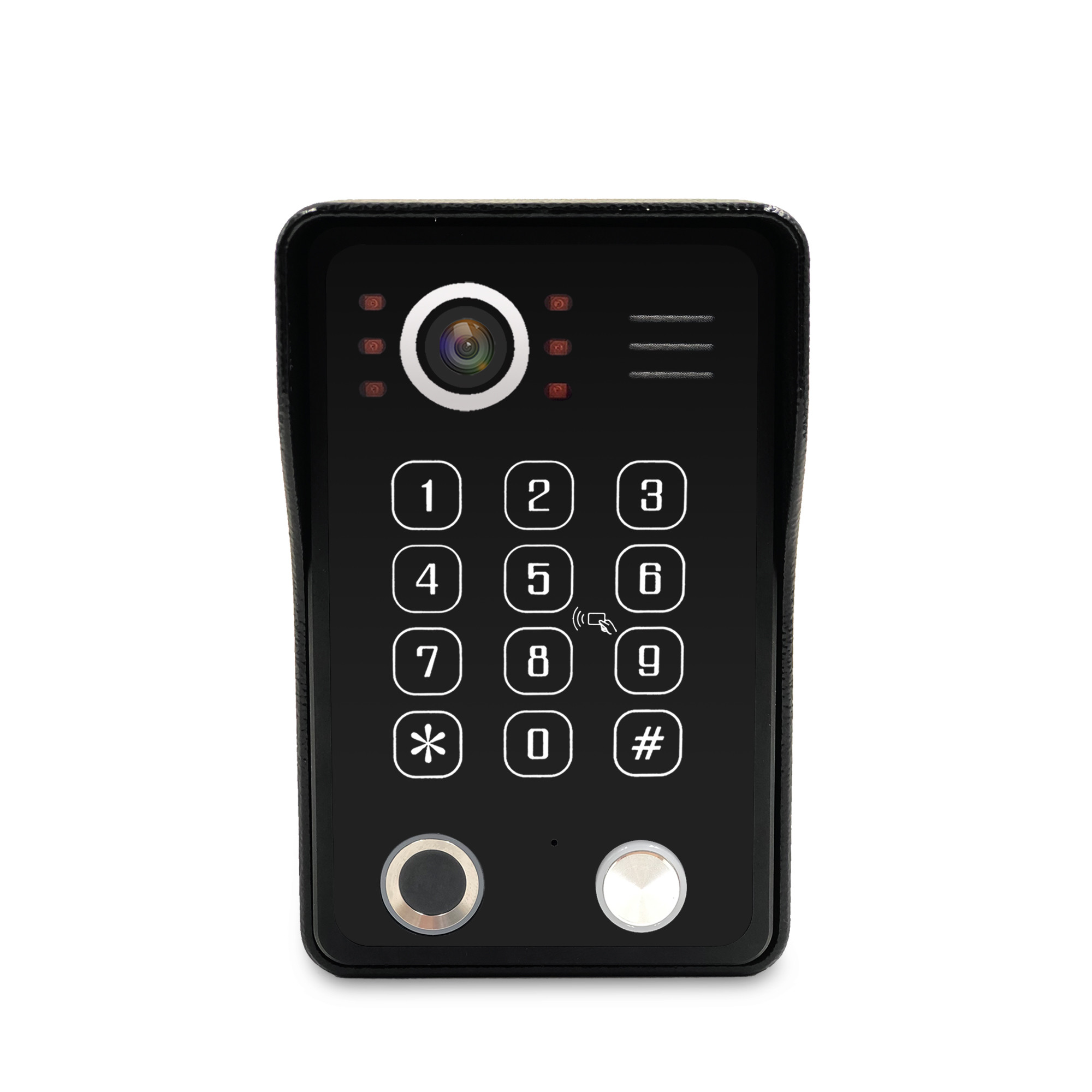

Doorbells:-
1. 1/2.7" High-Definition color camera
2. Resolution: 800TVL /720P/ 1080P(Optional).
3. With night vision
4. Metal case
5. 120° / 160° View angle (Optional).
6. Protection Standard: IP65
7. 4 wires connection
8. Surface / 30° angled mounting
9 Supports lock control
10. Operating temperature: - 30 ºC to + 60ºC
11. Power: 10 - 15V
12.Dimension: 133*48*21mm
Functions:-
Monitors:
1. Lock control / gate lock / Alarm clock
2. MP3/MP4 function
3. Monitor doorbell or CCTV cameras
4. Make calls between monitors
5. room to room intercom
6. DVR function, with both Video and audio
7. Answer machine function
8. Auto take pictures from doorbell camera
9. Supports Message leave
10 Can take Images or record video from doorbell, even you are talking with visitor
11.Multimedia manager
12.Photo frame
13.Outdoor panel unlock release
14.Indoor monitor unlock release
Type of signal: CVBS/AHD(up to 1080P)
Max. supports:
1).2 outdoor doorbells+6 indoor monitors+2 CCTV cameras
2).1 outdoor doorbell+6 indoor monitors+3 CCTV cameras
Doorbells:-
1). Surface/corner construction
2). Supports lock control
FAQ
1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It´s by software , no need connect with PIR Sensor ,motion detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel , after 30s or 120S , call panel will Auto say:Please leave a message , so that when you come back home can check video from indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When visitor press the call panel , Alina is answer the call , but visitor is looking for Mom , and mom at other room (No5 monitor ), So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only 800*480 ?
A: Because we are doing different with market , In order to help our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
8: Warmly weclome to visit our factory
