| Place of Origin: | China |
|---|---|
| Brand Name: | AVATA |
| Certification: | CE/FCC/RED/ROHS/ISO9001 |
| Model Number: | 92708MP+94207-1 |
| Minimum Order Quantity: | 100sets |
| Price: | $70-$150/set |
| Packaging Details: | Neutral packing，OEM/ODM Packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal, L/C |
| Supply Ability: | 20000 PCS/Month |
| Material: | Metal | Type: | 2 Wire Video Door Phone |
|---|---|---|---|
| Screen: | 7 Inch Touch Key | Connection: | 2 Wire,cat 5 |
| Night Vision:: | Yes | Voice Service: | Yes |
| Installation: | Surface-Mounted | Power: | DC15V, 0.8A / AC100-240V 50/60Hz (Optional) |
| Indoor Monitor Unlock Release: | Support | Outdoor Panel Unlock Release: | Support |
| Trademark: | OEM / ODM | Camera Sensor: | 1000tvl |
| View Angle: | 125° | LEDs For Night Vision: | Red Light LED |
| Operation Temp: | -40ºC +50ºC | Waterproof Rate: | IP65 |

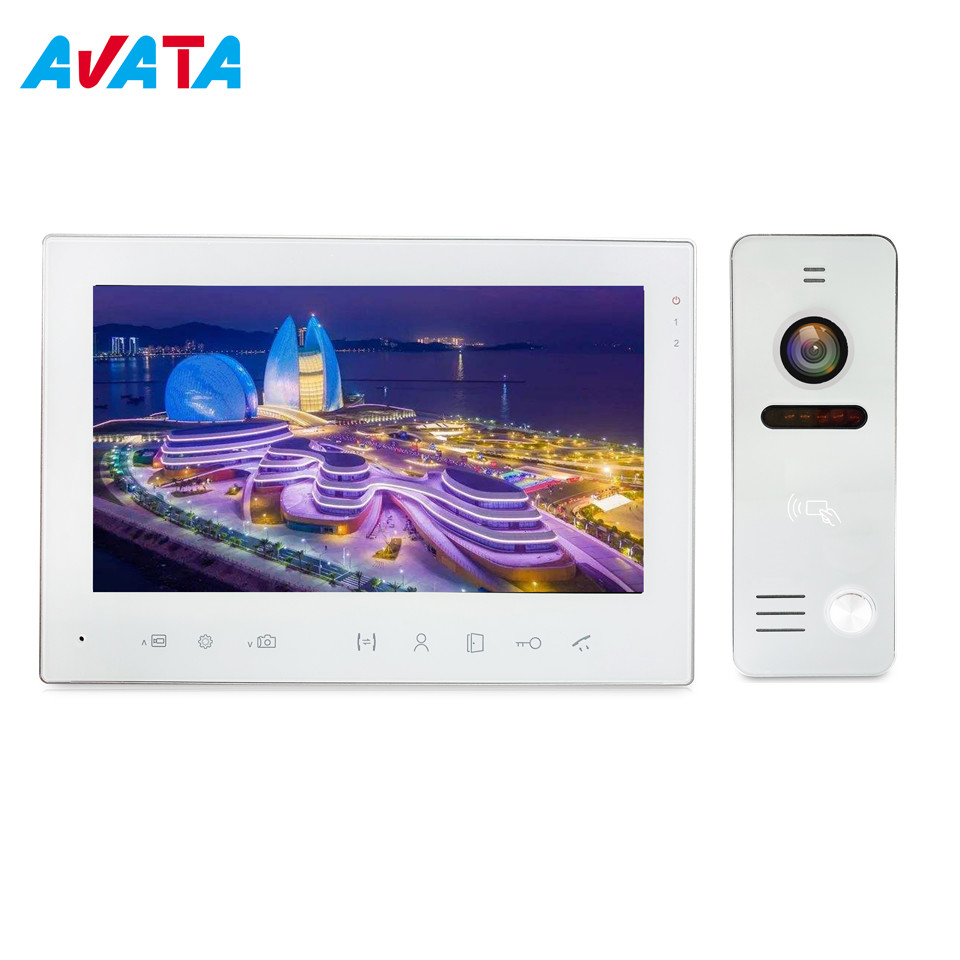

Video Interphone 2 Wires Home Security 7 Inches Video Doorphone Intercom
Outdoor station:
| Model | Specification |
| Color | Black & Silver & Copper |
| Remark | Wide-Angle & Metal housing |
| 94219-1000TVL | *1/3''CMOS,1000TVL, 2.3MM Lens |
| Product Type: | CVBS video input |
| Material: | Plasitc |

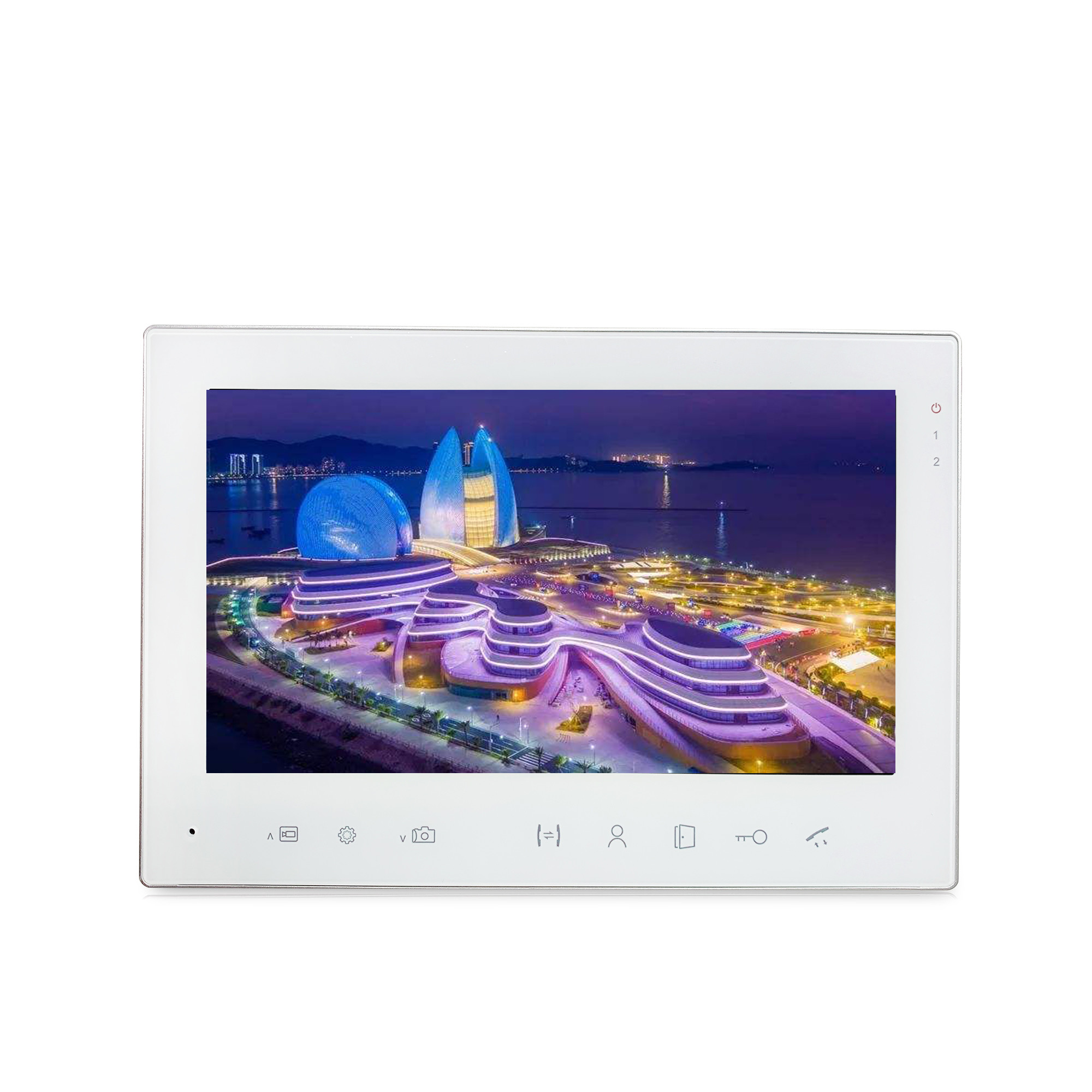

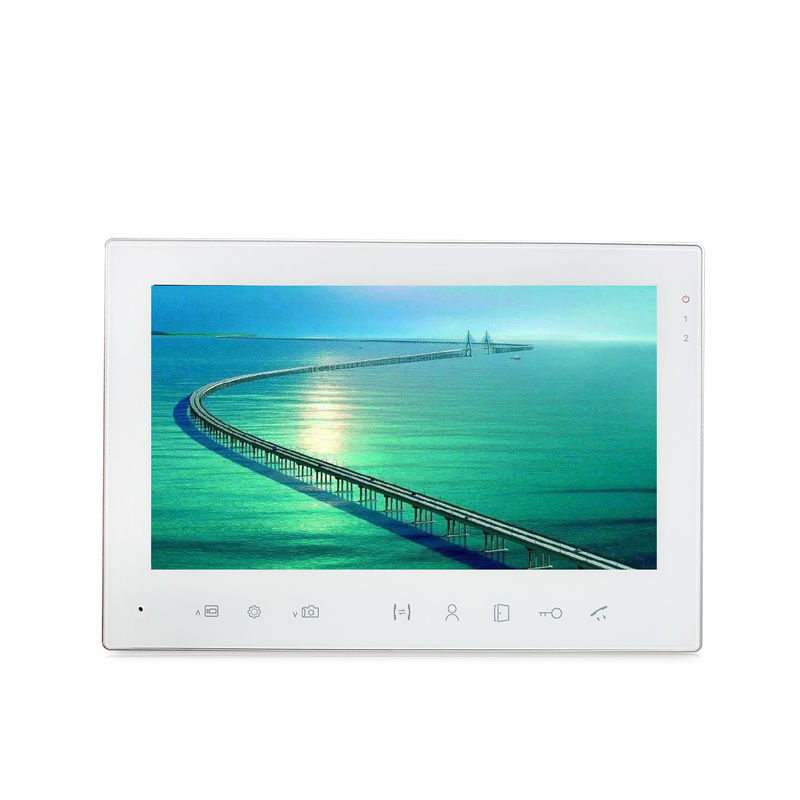

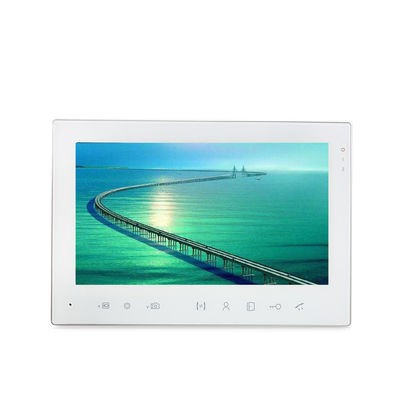

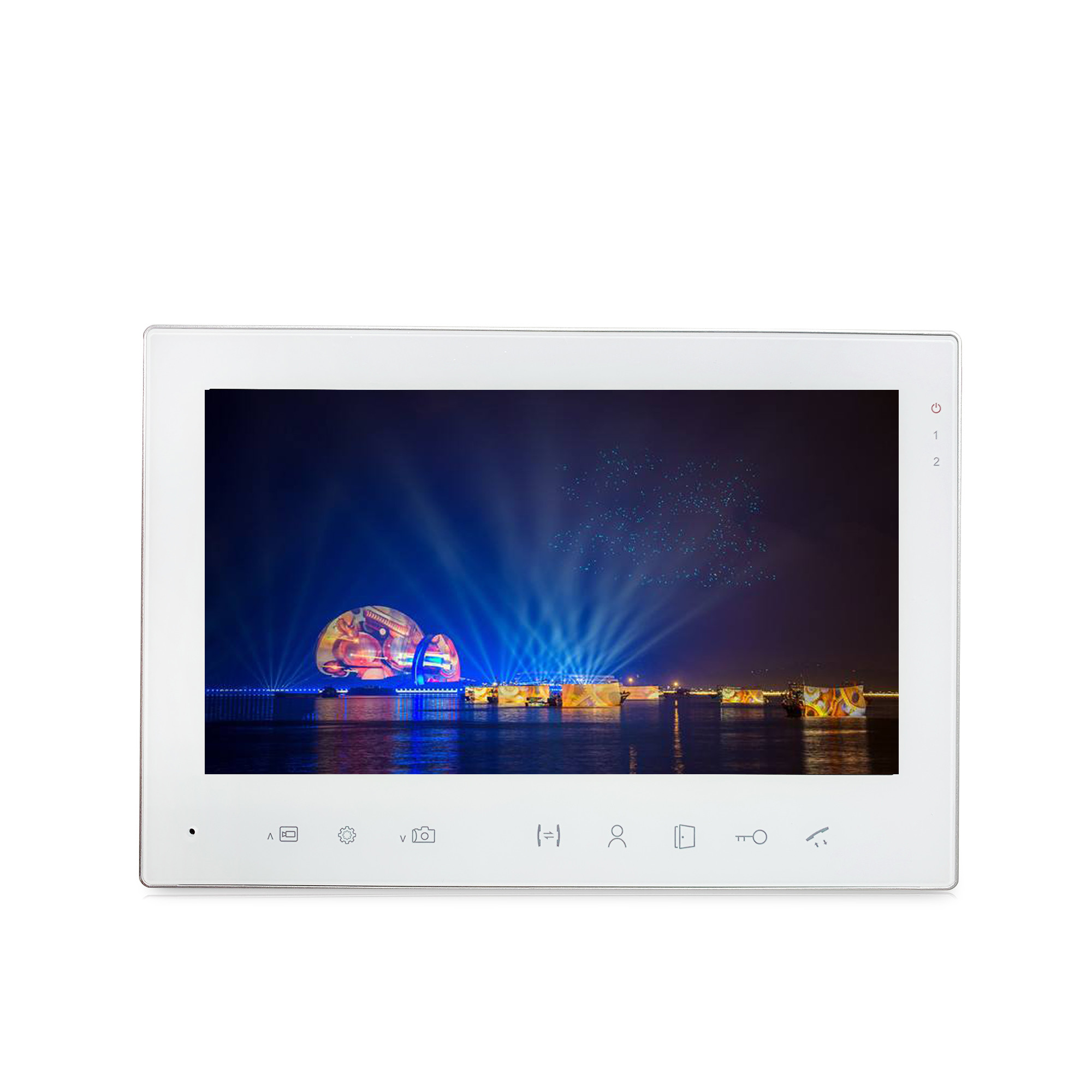

| Monitor | 7 inch monitor |
| Resolution: | 1024(RGB)×600(V) |
| Standard: | PAL/NTSC |
| Calling Mode: | Two-way Intercom |
| Stanby Current: | Maximum 250MA |
| Work Current: | Maximum 600MA |
| Power Supply: | External power DC12V;Built in power AC100-240V |
| Work Temperature: | -10~+60ºC |
| Installation Way: | Surface Mounting |
| SD Card Max Capacity: | 32GB Class 10TF (Micro SD ) Note: Must be use ≥Class10 |
| Input Video Signal: | TVI/CVI/CVBS/AHD |
| Motion detection: | Yes , For 2 Camera , 1Call Panel work in the same time |
| System: | Support 4 indoor monitor + 2 call panel + 2 Camera |
| Function: | Unlocking/Monitoring/Internal calling/Transfer calling /Recording |
| Advantage: | With Photo Frame/MP3 &MP4 player/Clock & Voice message /backgroud Music |
FAQ
1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It´s by software , no need connect with PIR Sensor ,motion detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel , after 30s or 120S , call panel will Auto say:Please leave a message , so that when you come back home can check video from indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When visitor press the call panel , Alina is answer the call , but visitor is looking for Mom , and mom at other room (No5 monitor ), So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only 800*480 ?
A: Because we are doing different with market , In order to help our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
8: Warmly weclome to visit our factory
