| Place of Origin: | China |
|---|---|
| Brand Name: | AVATA |
| Certification: | CE/FCC/RED/ROHS/ISO9001 |
| Model Number: | 94209 |
| Minimum Order Quantity: | 100pcs |
| Price: | $30-$50/pc |
| Packaging Details: | Neutral packing，OEM/ODM Packing |
| Delivery Time: | 15-30 days |
| Payment Terms: | T/T, Western Union, MoneyGram,paypal, L/C |
| Supply Ability: | 20000 PCS/Month |
| Material: | Metal | Type: | 4 Wire Video Door Phone |
|---|---|---|---|
| Screen: | 7 Inch Touch Key | Connection: | 4 Wire,cat 5 |
| Night Vision:: | Yes | Voice Service: | Yes |
| Installation: | Surface-Mounted | Power: | DC15V, 0.8A / AC100-240V 50/60Hz (Optional) |
| Indoor Monitor Unlock Release: | Support | Outdoor Panel Unlock Release: | Support |
| Trademark: | OEM / ODM | Camera Sensor: | 2.0MP |
| View Angle: | 160° | LEDs For Night Vision: | Red Light LED |
| Operation Temp: | -40ºC +50ºC | Waterproof Rate: | IP65 |

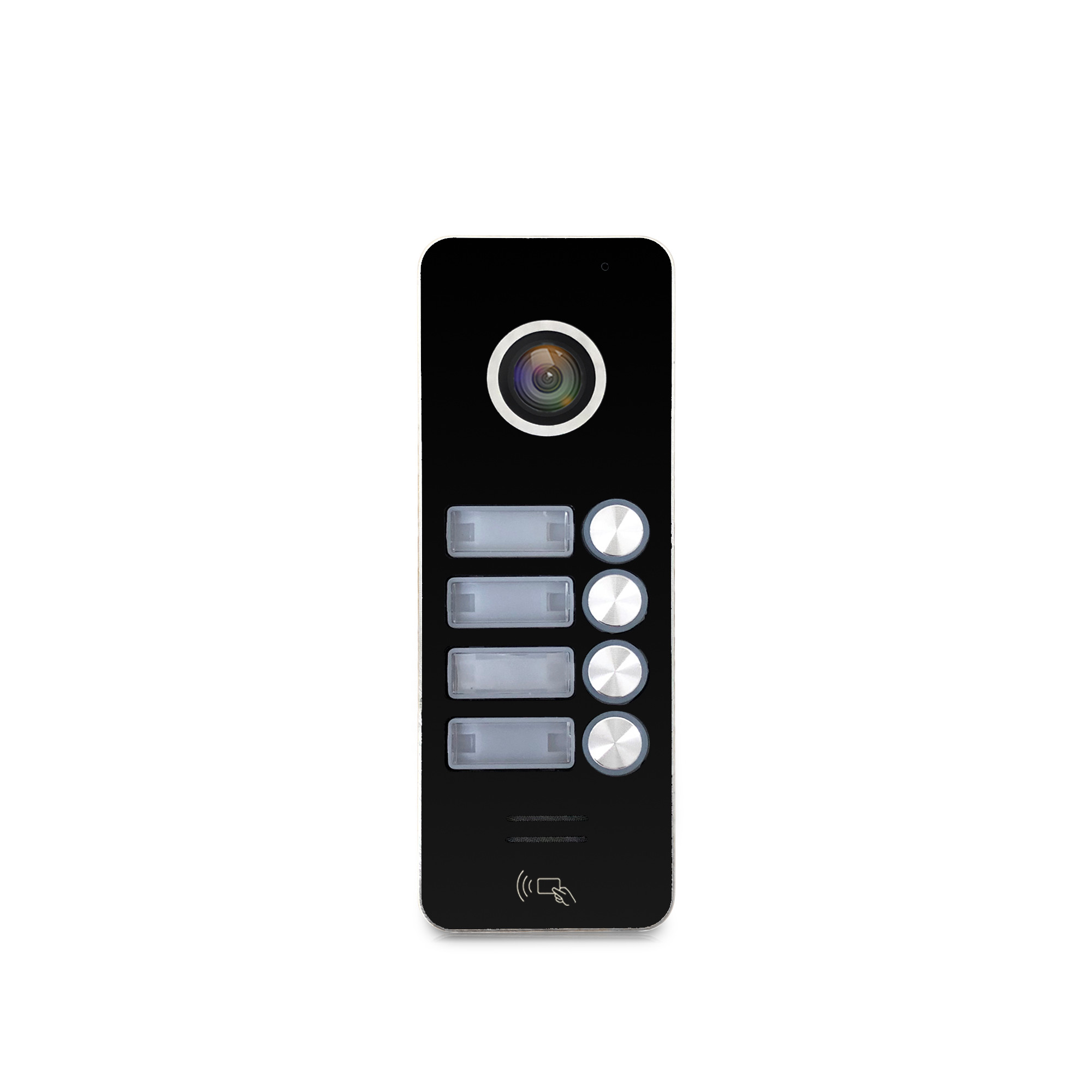

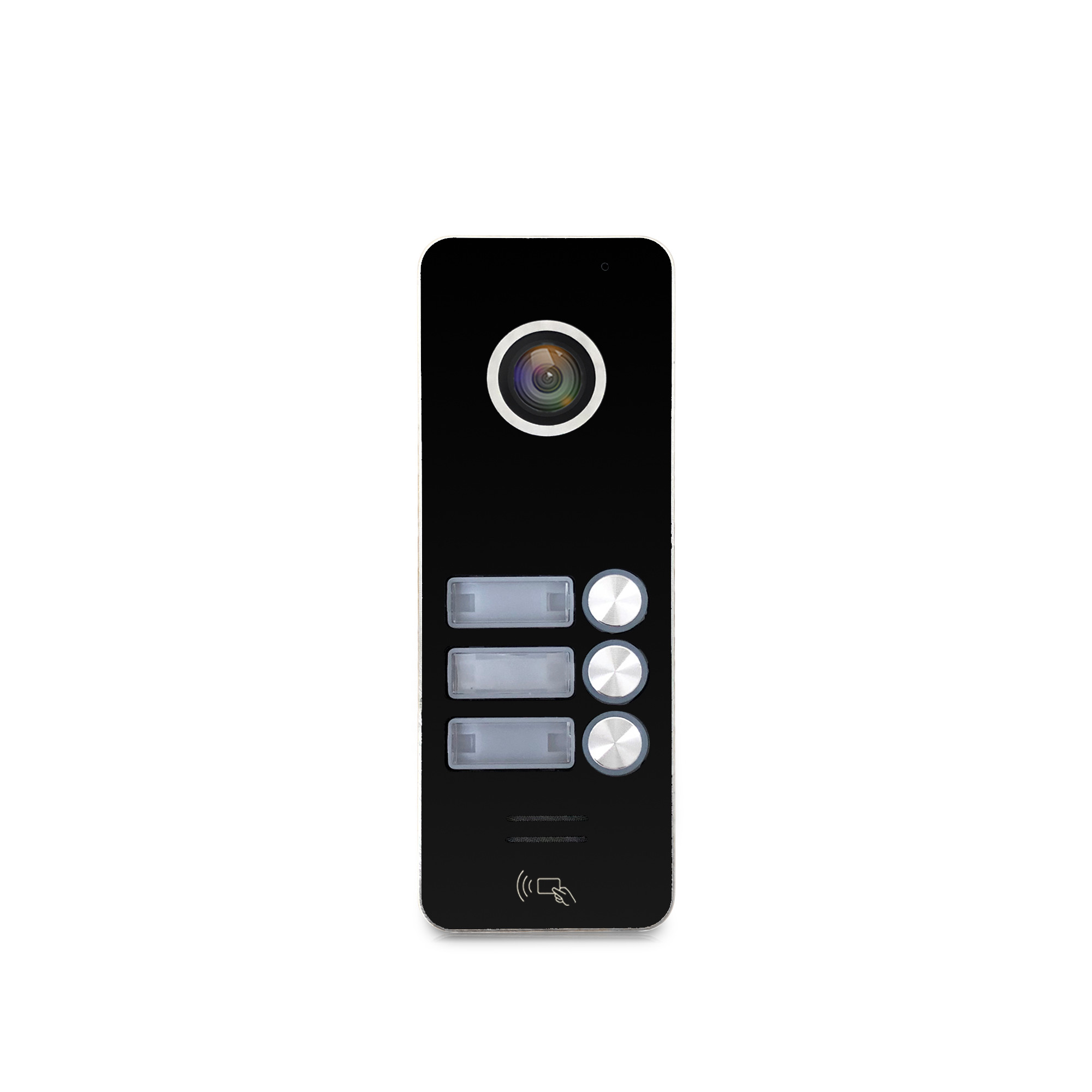

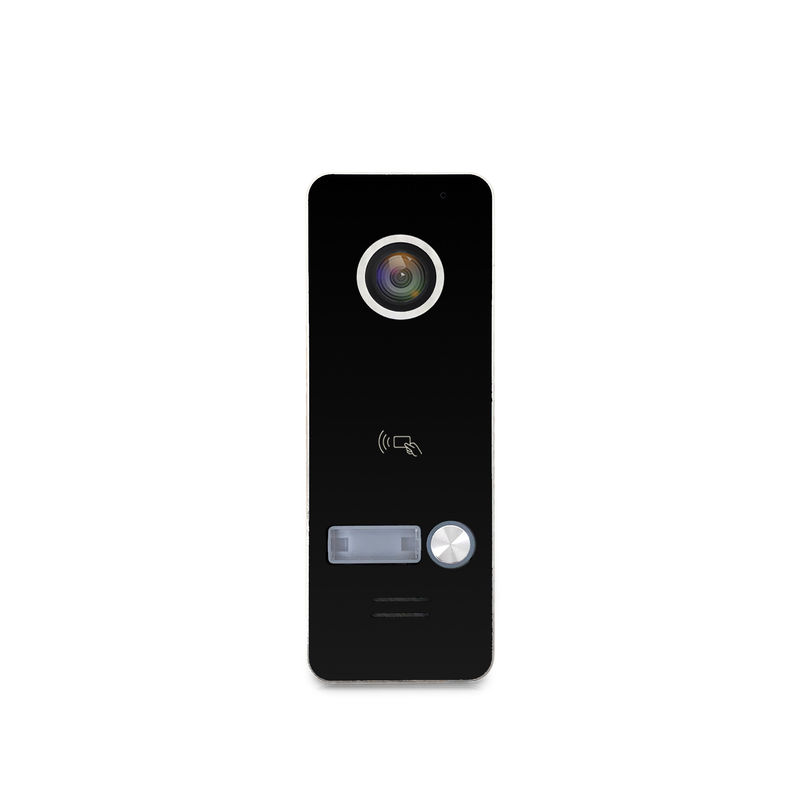

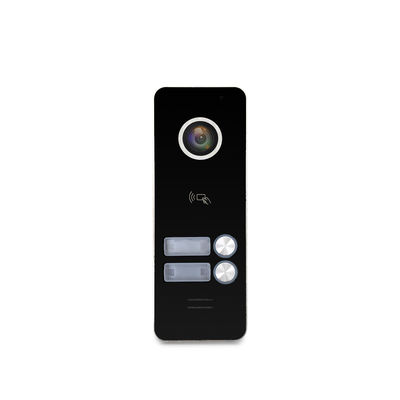

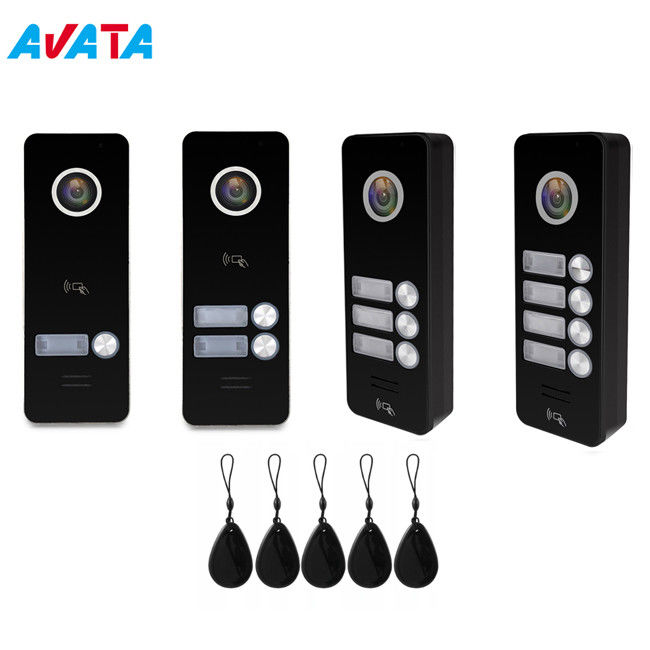

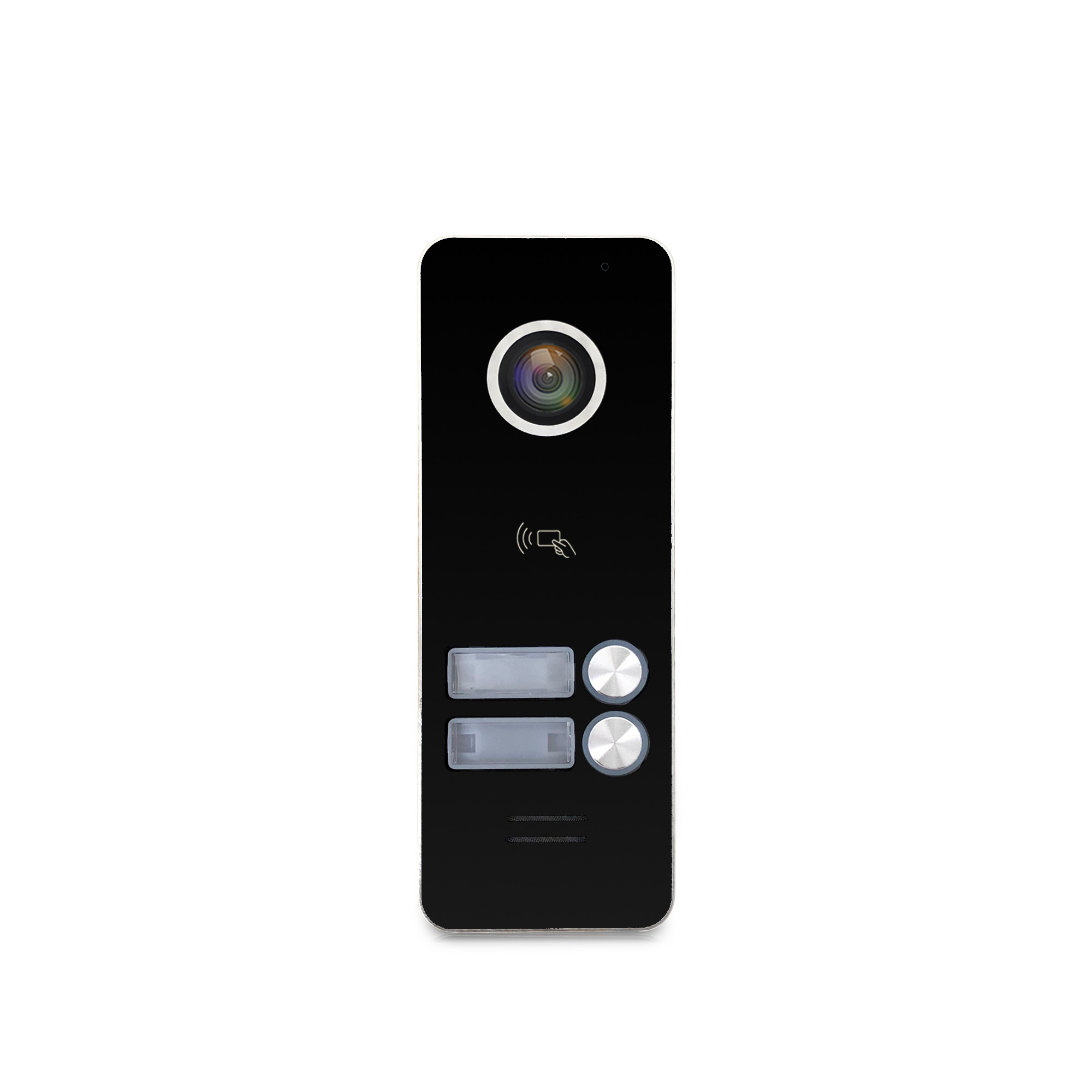

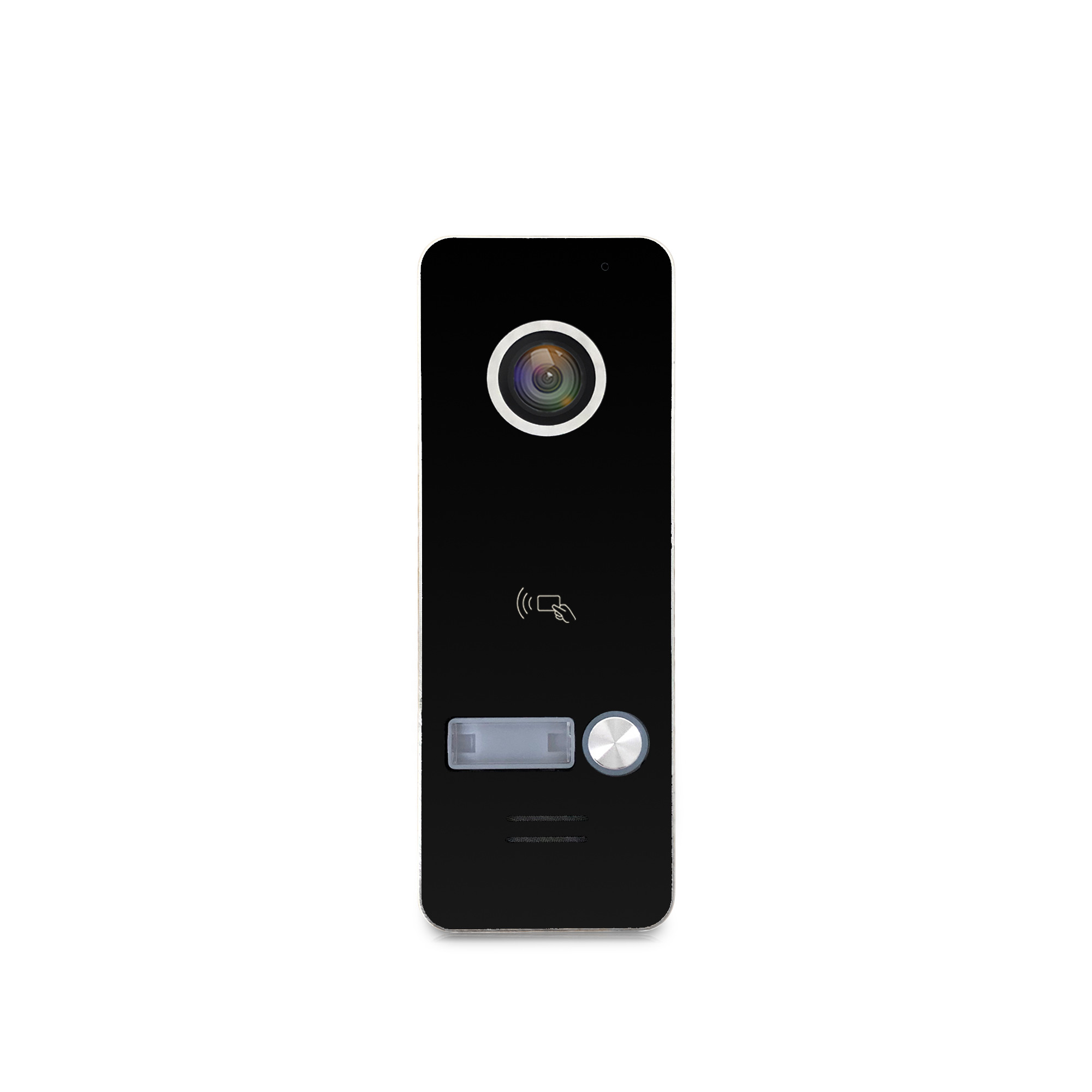

1-4 Buttons Video Door Phone Intercom Home Security Villa Apartment Doorbell
| Model | 94209-AHD1080P |
| Camera sensor: | 1/2.7"COMS,2.3mm Lens |
| Material | Aluminium alloy |
| View Angle: | 160 degree |
| Definition(Hor.): | AHD1080P |
| LEDs for night: | IR LEDs 120° |
| Waterproof: | IP65 |
| Operation Temp | ﹣40℃～+50℃ |
| Standard: | PAL/NTSC |
| Warranty: | 24 Months |
| Power Consumption | 200mA Max |
| Waterproof Rate | IP65 |
| Connection | 4 wire |
| Installation | Surface Mounted |
| Model | Specification |
| Color | Black & Silver & Copper |
| Remark | Wide-Angle & Metal housing |
| 94209C-1000TVL |
*1/3''CMOS,1000TVL, 2.3MM Lens *Supprt connect Exit button *Metal Housing ,Wide Angle 140° |
| 94209C-AHD720P |
*1/3''CMOS,1.3MP,AHD720P,2.3MM Lens *Supprt connect Exit button *With IR-CUT ,Metal Housing ,Wide Angle 140° |
| 94209C-AHD1080 |
*1/2.7''CMOS,2.0MP,AHD1080P *Supprt connect Exit button *With IR-CUT ,Metal Housing,Angle 160° *Support switch signal from 1080P-720P-CVBS |
FAQ
1.Is It possible support CVBS Video door phone ?
A:Yes ! can be work with 1AHD Call panel +1CVBS call panel +1AHD camera +1 CVBS panel
2. Do you have motion detection for video intercom?
A: Yes ! It´s by software , no need connect with PIR Sensor ,motion detection from 1 call panel or 2 camera
3:How to play Music or Movies by indoor monitor ?
A:Download music or Movies from computer------Copy to the SD card ------ inside SD card to the monitor -----Play
4:What is Voice messgae ?
A: When you not at home , but your visitor pressing the call panel , after 30s or 120S , call panel will Auto say:Please leave a message , so that when you come back home can check video from indoor monitor who is come to you and in what time .
5:Please explain transfer calling how to work with Video door bell?
A: First our system are suppory connect 6 indoor monitor , When visitor press the call panel , Alina is answer the call , but visitor is looking for Mom , and mom at other room (No5 monitor ), So Alina can be choose No5 transfer call to Mom
6: Why 7 inch monitor resolution is 1024*600 , other company only 800*480 ?
A: Because we are doing different with market , In order to help our customer have Competitive advantage , win the market !
7: Warranty
A:24 months warranty
